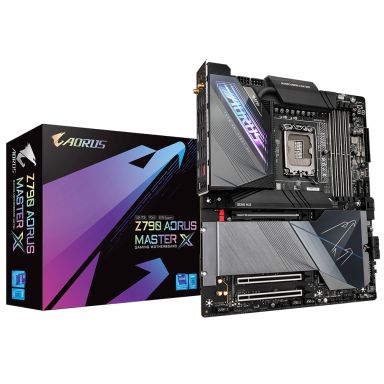

Gigabyte Z790 AORUS MASTER X Motherboard- Supports Intel 13th Gen CPUs, 20+1+2 phases VRM, up to 8266MHz DDR5 (OC), 1x PCIe 5.0 + 4x PCIe 4.0 M2, 10GbE LAN, Wi-Fi 7, USB 3.2 Gen 2x2
In Stock
|
$473.07
$567.68 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
5
Thunderbolt headers
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
8
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790 Express
Supported processor sockets
LGA 1700
PC health monitoring
Fan, Noise, Temperature, Voltage, Water cooling
Parallel processing technology support
Not supported
Motherboard form factor
Extended ATX
Component for
PC
Maximum internal memory supported by processor
192 GB
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790 Express
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1700
PC health monitoring
Fan, Noise, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
Motherboard form factor
Extended ATX
Component for
PC
Processor
Processor manufacturer
Intel
Maximum internal memory supported by processor
192 GB
Compatible processor series
Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Maximum number of SMP processors
1
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266 MHz
Maximum internal memory
192 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
8266 MHz
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
9
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
Discrete graphics support
Yes
DirectX version
12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
7
DisplayPort version
1.2
USB connector type
USB Type-A, USB Type-C
WiFi-AP antenna jack
2
S/PDIF out port
Yes
Microphone in
Yes
Headphone outputs
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Digital audio optical out
1
USB 3.2 Gen 2x2 Type-C ports quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
LAN controller
Marvell AQtion AQC113C
Ethernet interface type
10 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.3
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Features
Windows operating systems supported
Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790 Express
Supported processor sockets
LGA 1700
PC health monitoring
Fan, Noise, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
Motherboard form factor
Extended ATX
Component for
PC
Audio chip
Realtek ALC1220-VB
Product colour
Black
Expansion slots
Number of M.2 (M) slots
5
PCI Express x16 (Gen 3.x) slots
2
PCI Express x16 (Gen 5.x) slots
1
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS button
Yes
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
Discrete graphics support
Yes
DirectX version
12.0
Packaging data
Package width
345 mm
Package depth
294 mm
Package height
80 mm
Package weight
3.46 kg
Software
Windows operating systems supported
Windows 11 x64
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
Taiwan
Weight & dimensions
Height
35 mm
Package width
345 mm
Package depth
294 mm
Package height
80 mm
Package weight
3.46 kg
Width
305 mm
Depth
260 mm
Packaging content
Cables included
SATA
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Batteries included
Yes
Antenna included
Yes
Other features
Height
35 mm
Package width
345 mm
Package depth
294 mm
Package height
80 mm
Package weight
3.46 kg
Gigabyte Z790 AORUS MASTER X Motherboard- Supports Intel 13th Gen CPUs, 20+1+2 phases VRM, up to 8266MHz DDR5 (OC), 1x PCIe 5.0 + 4x PCIe 4.0 M2, 10GbE LAN, Wi-Fi 7, USB 3.2 Gen 2x2
