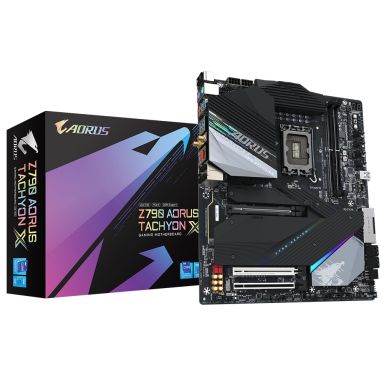

GIGABYTE Z790 AORUS TACHYON X - Supports Intel 13th Gen Core CPUs, Digital direct 15+1+2 phases VRM, up to 8700MHz DDR5 (O.C), 4 x M.2 PCIe 4.0 x4/x2, Wi-Fi 6E AX211, 2.5GbE LAN, USB 3.2 Gen 2
In Stock
|
$643.72
$772.46 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
4
Thunderbolt headers
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
USB 3.2 Gen 2x2 connectors
1
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790 Express
Supported processor sockets
LGA 1700
PC health monitoring
Fan, Noise, Temperature, Voltage, Water cooling
Parallel processing technology support
Not supported
HDMI version
2.0
Motherboard form factor
Extended ATX
Component for
PC
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790 Express
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1700
PC health monitoring
Fan, Noise, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
Motherboard form factor
Extended ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
8700,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8333 MHz
Maximum internal memory
96 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
8700 MHz
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
8
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB connector type
USB Type-A, USB Type-C
WiFi-AP antenna jack
2
S/PDIF out port
Yes
PS/2 ports quantity
2
Headphone outputs
5
HDMI version
2.0
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.3
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790 Express
Supported processor sockets
LGA 1700
PC health monitoring
Fan, Noise, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
Motherboard form factor
Extended ATX
Component for
PC
Audio chip
Realtek ALC1220-VB
Product colour
Black
Expansion slots
Number of M.2 (M) slots
4
PCI Express x16 slots
3
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS button
Yes
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Packaging data
Package width
345 mm
Package depth
294 mm
Package height
80 mm
Package weight
2.54 kg
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton Internet Security
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
Taiwan
Weight & dimensions
Height
35 mm
Package width
345 mm
Package depth
294 mm
Package height
80 mm
Package weight
2.54 kg
Width
305 mm
Depth
270 mm
Packaging content
Cables included
SATA
Bundled software
Norton Internet Security
Batteries included
Yes
Other features
Height
35 mm
Package width
345 mm
Package depth
294 mm
Package height
80 mm
Package weight
2.54 kg
GIGABYTE Z790 AORUS TACHYON X - Supports Intel 13th Gen Core CPUs, Digital direct 15+1+2 phases VRM, up to 8700MHz DDR5 (O.C), 4 x M.2 PCIe 4.0 x4/x2, Wi-Fi 6E AX211, 2.5GbE LAN, USB 3.2 Gen 2
