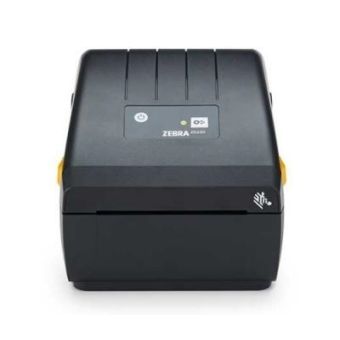

Zebra ZD230 label printer Thermal transfer 203 x 203 DPI 152 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth
In Stock
|
£293.20
£351.84 (Inc. VAT)
get it next day (UK Mainland Orders)
Zebra ZD230 label printer Thermal transfer 203 x 203 DPI 152 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth
Write Your Own Review
Print quality
Maximum resolution
203 x 203 DPI
Maximum printing width
10.4 cm
Printing
Colour
No
Print speed
152 mm/sec
Maximum resolution
203 x 203 DPI
Maximum printing width
10.4 cm
Print technology
Thermal transfer
Display
Display
No
Network
Wi-Fi
Yes
Ethernet LAN
Yes
Memory
Internal memory
128 MB
Flash memory
256 MB
Paper handling
Supported paper width
25.4 - 112 mm
Ribbon width
10.9 cm
Ribbon length
300 m
Media thickness
0.08 - 0.1905 mm
Maximum roll diameter
12.7 cm
Maximum label width
11.2 cm
Maximum label length
0.991 m
Core diameter
1.27 cm
Ports & interfaces
Wi-Fi standards
Wi-Fi 5 (802.11ac)
USB 2.0 ports quantity
1
Connectivity technology
Wired & Wireless
Bluetooth version
4.1
Bluetooth
Yes
Wi-Fi
Yes
Ethernet LAN
Yes
USB port
Yes
Performance
Built-in barcodes
1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Number of fonts
23
Ribbon width
10.9 cm
Ribbon length
300 m
Internal memory
128 MB
Flash memory
256 MB
Certification
IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Page description languages
EZPL, XML, ZPL II
Design
Display
No
Product colour
Black
Certification
IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Technical details
Product colour
Black
Built-in barcodes
1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Number of fonts
23
Ribbon width
10.9 cm
Ribbon length
300 m
Maximum label width
11.2 cm
Maximum label length
0.991 m
Sustainability certificates
ENERGY STAR
Harmonized System (HS) code
84433210
Certificates
Certification
IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
4.4 - 41 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
197 mm
Depth
267 mm
Height
191 mm
Weight
1.1 kg
Logistics data
Harmonized System (HS) code
84433210
| Length | 26.70 cm |
| Width | 19.70 cm |
| Height | 19.10 cm |
| Weight | 3.49 kgs |
