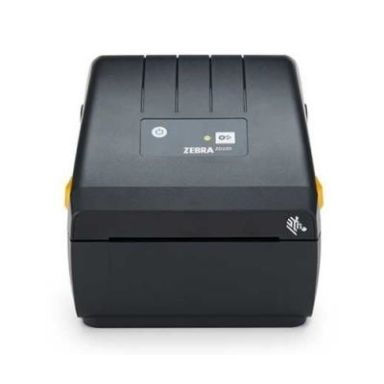

Zebra ZD230 label printer Thermal transfer 203 x 203 DPI 152 mm/sec Wired Ethernet LAN
In Stock
|
Call For Price
(0808 189 1246)
Print quality
Maximum resolution
203 x 203 DPI
Maximum printing width
10.4 cm
Printing
Colour
No
Print speed
152 mm/sec
Maximum resolution
203 x 203 DPI
Maximum printing width
10.4 cm
Print technology
Thermal transfer
Display
Display
No
Network
Wi-Fi
No
Ethernet LAN
Yes
Memory
Internal memory
128 MB
Flash memory
256 MB
Paper handling
Supported paper width
25.4 - 112 mm
Ribbon width
10.9 cm
Ribbon length
300 m
Media thickness
0.08 - 0.1905 mm
Maximum roll diameter
12.7 cm
Maximum label width
11.2 cm
Maximum label length
0.991 m
Core diameter
1.27 cm
Ports & interfaces
USB 2.0 ports quantity
1
Connectivity technology
Wired
Bluetooth
No
Wi-Fi
No
Ethernet LAN
Yes
USB port
Yes
Performance
Built-in barcodes
1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts
23
Ribbon width
10.9 cm
Ribbon length
300 m
Internal memory
128 MB
Flash memory
256 MB
Certification
IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Page description languages
EZPL, XML, ZPL II
Design
Display
No
Product colour
Black
Certification
IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Technical details
Product colour
Black
Built-in barcodes
1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts
23
Ribbon width
10.9 cm
Ribbon length
300 m
Maximum label width
11.2 cm
Maximum label length
0.991 m
Sustainability certificates
ENERGY STAR
Harmonized System (HS) code
84433210
Certificates
Certification
IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
4.4 - 41 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
197 mm
Depth
267 mm
Height
191 mm
Weight
1.1 kg
Packaging content
Cables included
AC
Logistics data
Harmonized System (HS) code
84433210
Zebra ZD230 label printer Thermal transfer 203 x 203 DPI 152 mm/sec Wired Ethernet LAN
