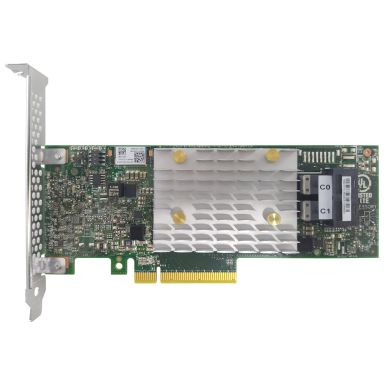

Lenovo 4Y37A72482 RAID controller PCI Express x8 3.0 12 Gbit/s

Supported storage drive interfaces

SAS, Serial ATA

Host interface

PCI Express x8

PCI Express slots version

3.0

Internal mini-SAS HD ports

2

RAID levels

0, 1, 5, 10, 50

Chipset

Adaptec PM8222 SmartIOC 2100

S.M.A.R.T. support

Yes

Data transfer rate

12 Gbit/s

Certification

FCC Part 15 Class A Australia/New Zealand (AS/NZS 3548) Canada (ICES-003 Class B) Europe (EN55032/EN55024) Japan VCCI Korea KCC RoHS compliant EN/IEC/UL 60950 USA (FCC 47 CFR part 15 Subpart B class B)

Hot-swap

Yes

JBOD function

Yes

Data transfer rate

12 Gbit/s

RAID levels

0, 1, 5, 10, 50

Chipset

Adaptec PM8222 SmartIOC 2100

S.M.A.R.T. support

Yes

Hot-swap

Yes

Certification

FCC Part 15 Class A Australia/New Zealand (AS/NZS 3548) Canada (ICES-003 Class B) Europe (EN55032/EN55024) Japan VCCI Korea KCC RoHS compliant EN/IEC/UL 60950 USA (FCC 47 CFR part 15 Subpart B class B)

Operating temperature (T-T)

0 - 55 °C

Operating relative humidity (H-H)

20 - 80%

Width

167 mm

Height

64 mm
