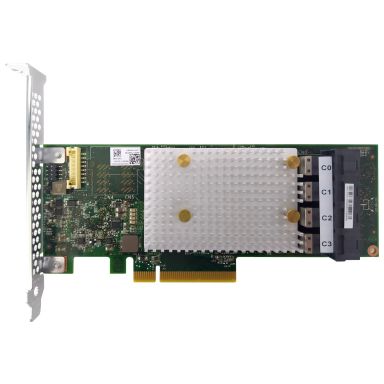

Lenovo 4Y37A72485 RAID controller PCI Express x8 3.0 12 Gbit/s

Supported storage drive interfaces

SAS, Serial ATA

Host interface

PCI Express x8

PCI Express slots version

3.0

Internal memory

4000 MB

RAID levels

0, 1, 10, 5, 50, 6, 60

Internal memory

4000 MB

SSD support

Yes

Chipset

Microchip Luxor ROC PM8236

Number of devices supported

16

Data transfer rate

12 Gbit/s

Certification

FCC Part 15 Class A Australia/New Zealand (AS/NZS 3548) Canada (ICES-003 Class B) Europe (EN55032/EN55024) Japan VCCI Korea KCC RoHS compliant EN/IEC/UL 60950 USA (FCC 47 CFR part 15 Subpart B class B)

Hot-swap

Yes

JBOD function

Yes

Data transfer rate

12 Gbit/s

RAID levels

0, 1, 10, 5, 50, 6, 60

SSD support

Yes

Chipset

Microchip Luxor ROC PM8236

Number of devices supported

16

Hot-swap

Yes

Certification

FCC Part 15 Class A Australia/New Zealand (AS/NZS 3548) Canada (ICES-003 Class B) Europe (EN55032/EN55024) Japan VCCI Korea KCC RoHS compliant EN/IEC/UL 60950 USA (FCC 47 CFR part 15 Subpart B class B)

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Operating temperature (T-T)

0 - 55 °C

Operating relative humidity (H-H)

20 - 80%

Width

167 mm

Height

64 mm
