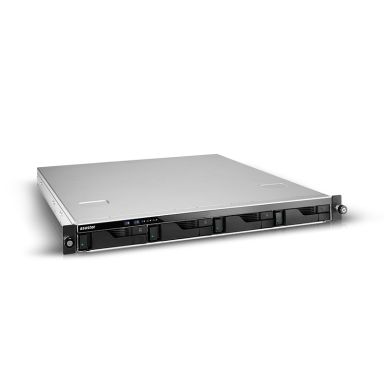

Asustor Lockerstor 4RD NAS Rack (1U) Intel Atom C3538 8 GB DDR4 Grey

Storage drives installed

No

Installed storage drive type

No

Supported storage drive types

HDD & SSD

Number of storage drives supported

4

Maximum supported storage capacity

72 TB

Storage drive interface

Serial ATA III

Storage drive size

2.5/3.5"

RAID support

Yes

RAID levels

0, 1, 5, 6, 10

Supported storage drive interfaces

Serial ATA III

Storage drive sizes supported

2.5,3.5"

Processor manufacturer

Intel

CPU configuration (max)

1

Conflict-Free processor

Yes

Processor frequency

2.1 GHz

Processor family

Processor model

C3538

Processor cores

4

Internal memory type

DDR4

Internal memory

8 GB

Memory form factor

SO-DIMM

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000,2500 Mbit/s

Wake-on-LAN ready

Yes

Supported network protocols

CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog

Jumbo frames support

Yes

USB port

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Number of SATA III connectors

4

Ethernet LAN (RJ-45) ports

4

RAID support

Yes

RAID levels

0, 1, 5, 6, 10

Fan diameter 2

4 cm

Cooling type

Active

Fan diameter

4 cm

Product colour

Grey

Number of fans

2 fan(s)

Chassis type

Rack (1U)

Type

NAS

Device class

Small & Medium Business

Backup function

Yes

Product colour

Grey

Number of users

4096 user(s)

Chassis type

Rack (1U)

Number of fans

2 fan(s)

Harmonized System (HS) code

84714100

System log

Yes

S.M.A.R.T. support

Yes

Password authentication

Yes

Type

NAS

Device class

Small & Medium Business

Backup function

Yes

On/off switch

Yes

Windows operating systems supported

Windows 10, Windows 7, Windows 8, Windows XP

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Web-based management

Yes

Security algorithms

AES, SSH, SSL/TLS

Number of users

4096 user(s)

Snapshot

Yes

Cooling type

Active

Fan diameter

4 cm

Number of fans

2 fan(s)

Security algorithms

AES, SSH, SSL/TLS

Windows operating systems supported

Windows 10, Windows 7, Windows 8, Windows XP

Mac operating systems supported

Yes

Linux operating systems supported

Yes

On/off switch

Yes

Web-based management

Yes

Power supply unit (PSU) capacity

250 W

AC input voltage

100 - 240 V

Number of power supply units

2

Width

439 mm

Depth

515 mm

Height

44 mm

Weight

9.3 kg

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel Secure Key Technology version

1

Intel Secure Boot Technology version

1

Intel Secure Boot

Yes

Intel QuickAssist Technology

Yes

Execute Disable Bit

Yes

Embedded options available

Yes

Windows operating systems supported

Windows 10, Windows 7, Windows 8, Windows XP

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Operating temperature (T-T)

Operating relative humidity (H-H)

5 - 95%

Certification

FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS

Harmonized System (HS) code

84714100

Certification

FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS
