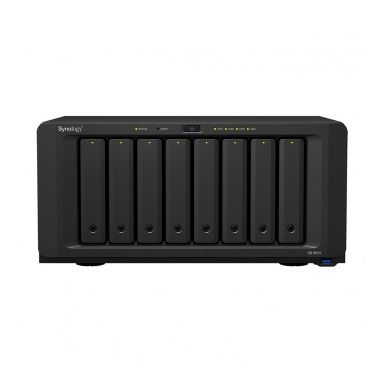

Synology DiskStation DS1819+ NAS/storage server C3538 Ethernet LAN Tower Black
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Storage
Storage drives installed
No
Installed storage drive type
No
Supported storage drive types
HDD-SSD
Number of storage drives supported
8
Hot-swap drive bays
Yes
RAID support
Yes
RAID levels
0-1-5-6-10-JBOD
Storage drive sizes supported
2.5-3.5"
Processor
Tjunction
100 °C
Thermal Design Power (TDP)
15 W
Tcase
87 °C
Stepping
B1
Processor threads
4
Processor socket
BGA 1310
Processor package size
34 x 28 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Denverton
Processor code
SR3L7
Processor cache type
Smart Cache
Processor cache
8 MB
Processor boost frequency
2.10 GHz
PCI Express slots version
3
ECC supported by processor
Yes
CPU configuration (max)
1
Maximum internal memory supported by processor
256 GB
Conflict-Free processor
Yes
Processor ARK ID
97929
Processor frequency
2.10 GHz
Processor family
Intel AtomÂ
Processor model
C3538
Processor cores
4
Memory
Internal memory type
DDR4
Internal memory
4 GB
Maximum RAM supported
32 GB
Memory slots
2
Network
Link aggregation
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Wi-Fi
No
Wake-on-LAN ready
Yes
iSCSI support
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ethernet LAN (RJ-45) ports
4
eSATA ports quantity
2
Hard drive
RAID support
Yes
RAID levels
0-1-5-6-10-JBOD
Design
Cooling type
Active
Fan diameter
12 cm
Drive bay locking
Yes
Cable lock slot type
Kensington
Product colour
Black
Number of fans
2 fan(s)
Chassis type
Tower
Cable lock slot
Yes
Technical details
Type
NAS
Backup function
Yes
Backup features
Cloud-iSCSI LUN
Product colour
Black
Number of users
2048 user(s)
Noise level
22.2 dB
Multilingual support
Yes
LED indicators
Alarm-HDD-Network-Power-Status
Chassis type
Tower
Number of fans
2 fan(s)
Performance
Browser supported
Chrome- Firefox- Internet Explorer 10+- Safari 10+
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud-iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Windows 10-Windows 7
Server operating systems supported
Windows Server 2016
Web-based management
Yes
Security algorithms
HTTPS-SNMP-SSH-SSL/TLS
Reset button
Yes
Operating system installed
DiskStation Manager
Number of users
2048 user(s)
Noise level
22.2 dB
Multilingual support
Yes
Access Control List (ACL)
Yes
Cooling
Cooling type
Active
Fan diameter
12 cm
Number of fans
2 fan(s)
Security
Drive bay locking
Yes
Cable lock slot type
Kensington
Security algorithms
HTTPS-SNMP-SSH-SSL/TLS
Cable lock slot
Yes
Access Control List (ACL)
Yes
Software
Windows operating systems supported
Windows 10-Windows 7
Server operating systems supported
Windows Server 2016
Operating system installed
DiskStation Manager
Management features
On/off switch
Yes
Web-based management
Yes
Reset button
Yes
Power
Power consumption (HDD standby)
29.39 W
Power supply location
Built-in
Power supply unit (PSU) capacity
250 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
66.96 W
Number of power supply units
1
Weight & dimensions
Width
343 mm
Depth
243 mm
Height
166 mm
Weight
6 kg
Packaging content
Quick installation guide
Yes
Cables included
AC-LAN (RJ-45)
Processor special features
Maximum number of PCI Express lanes
12
Intel Turbo Boost Technology
No
Intel Secure Key
Yes
Intel OS Guard
Yes
Intel Hyper Threading Technology (Intel HT Technology)
No
Intel AES New Instructions (Intel AES-NI)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Secure Boot
Yes
Intel QuickAssist Technology
Yes
Execute Disable Bit
Yes
Embedded options available
Yes
Memory channels supported by processor
Dual
Memory types supported by processor
DDR4-SDRAM
System requirements
Windows operating systems supported
Windows 10-Windows 7
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Certificates
Certification
FCC
CE
BSMI
EAC
VCCI
CCC
RCM
KC
RoHS compliance
Yes
Packaging data
Cables included
AC-LAN (RJ-45)
Other features
Processor ARK ID
97929
Synology DiskStation DS1819+ NAS/storage server C3538 Ethernet LAN Tower Black
| Length | 24.30 cm |
| Width | 34.30 cm |
| Height | 16.60 cm |
| Weight | 6.000000 kgs |
