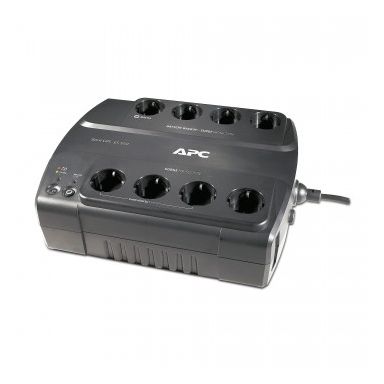

APC Back-UPS uninterruptible power supply (UPS) Standby (Offline) 550 VA 330 W
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Power
Output frequency regulation
47 - 63 Hz
Output power
330 W
Surge energy rating
310 J
Maximum current
0.41666666666667
Efficiency
0.987
Output power capacity
550 VA
Ports & interfaces
Cable length
1.83 m
USB port
Yes
Number of type F outputs
8
AC outlet types
Type F
Performance
Hold time (min)
6 ms
Hold time (max)
10 ms
UPS topology
Standby (Offline)
Waveform
Sine
LED indicators
Battery replacement
Surge protection
Yes
Power protection features
Overload
Noise level
40 dB
Audible alarm(s)
Yes
Features
Hold time (min)
6 ms
Hold time (max)
10 ms
UPS topology
Standby (Offline)
Waveform
Sine
Output frequency regulation
47 - 63 Hz
Output power
330 W
Surge energy rating
310 J
Maximum current
0.41666666666667
Efficiency
0.987
Surge protection
Yes
Power protection features
Overload
Noise level
40 dB
Audible alarm(s)
Yes
Output power capacity
550 VA
Input frequency
50/60 Hz
Battery
Battery capacity
86 VAh
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
16 h
Typical backup time at half load
12.4 min
Typical backup time at full load
3.2 min
Hot-swap battery
Yes
Cold start
Yes
Automatic battery test
Yes
Design
Form factor
Compact
LED indicators
Battery replacement
Product colour
Black
Energy Star certified
Yes
Certification
CE REACH PEP EOLI
Cable length
1.83 m
RoHS compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 9000 m
Non-operating altitude
0 - 9000 m
Weight & dimensions
Weight
6.02 kg
Width
224 mm
Height
89 mm
Depth
311 mm
Package width
279 mm
Package depth
400 mm
Package height
127 mm
Package weight
6.93 kg
Packaging data
Cables included
Phone (RJ-11)
Manual
Yes
Software CD
Yes
Package width
279 mm
Package depth
400 mm
Package height
127 mm
Package weight
6.93 kg
Logistics data
Quantity per master (outer) case
2 pc(s)
Quantity per pallet
48 pc(s)
Certificates
Energy Star certified
Yes
Certification
CE REACH PEP EOLI
RoHS compliance
Yes
Other features
Nominal output voltage
230 V
Packaging content
Cables included
Phone (RJ-11)
Manual
Yes
Software CD
Yes
APC Back-UPS uninterruptible power supply (UPS) Standby (Offline) 550 VA 330 W
| Length | 31.10 cm |
| Width | 22.40 cm |
| Height | 8.90 cm |
| Weight | 6.020000 kgs |
