Power | |
---|---|
Input power factor | 0.99 |
Output power | 40000 W |
Input operation voltage (min) | 304 V |
Input operation voltage (max) | 477 V |
Output operation voltage (min) | 380 V |
Output operation voltage (max) | 415 V |
Maximum current | 73 A |
Output voltage Total Harmonic Distortion (THD) | 0.03 |
Input current Total Harmonic Distortion (THD) | 0.03 |
Crest factor | 0.12569444444444 |
Output power capacity | 40000 VA |
Performance | |
UPS topology | Double-conversion (Online) |
Number of output phases | 3 |
Number of input phases | 3 |
Noise level | 63 dB |
Overload capacity (10 minutes) | 1.25 |
Overload capacity (1 minute) | 1.5 |
Features | |
Output frequency | 50/60 Hz |
UPS topology | Double-conversion (Online) |
Number of output phases | 3 |
Number of input phases | 3 |
Input power factor | 0.99 |
Output power | 40000 W |
Input operation voltage (min) | 304 V |
Input operation voltage (max) | 477 V |
Output operation voltage (min) | 380 V |
Output operation voltage (max) | 415 V |
Maximum current | 73 A |
Output voltage Total Harmonic Distortion (THD) | 0.03 |
Noise level | 63 dB |
Input current Total Harmonic Distortion (THD) | 0.03 |
Crest factor | 0.12569444444444 |
Output power capacity | 40000 VA |
Overload capacity (10 minutes) | 1.25 |
Overload capacity (1 minute) | 1.5 |
Input frequency | 45/65 Hz |
Design | |
International Protection (IP) code | IP20 |
Form factor | Tower |
Product colour | White |
Certification | CE EAC IEC 62040-1-1 IEC 62040-2 IEC 62040-3 IEC 62040-4 ISTA 2B RCM WEEE REACH |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -15 - 40 °C |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Operating altitude | 0 - 984.3 m |
Non-operating altitude | 0 - 14763.6 m |
Technical details | |
Output voltage | 400 V |
Output frequency | 50/60 Hz |
Sustainability certificates | RoHS |
Weight & dimensions | |
Weight | 70 kg |
Width | 250 mm |
Height | 770 mm |
Depth | 900 mm |
Package width | 400 mm |
Package depth | 1050 mm |
Package height | 1015 mm |
Package weight | 86 kg |

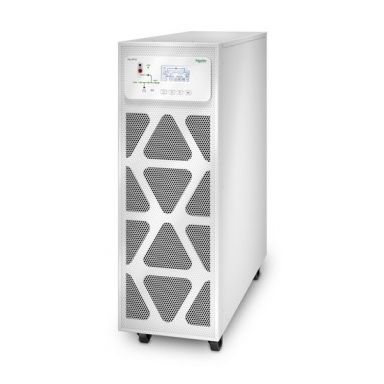

APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 40000 VA 40000 W
Length | 90.0000 cm |
Width | 25.0000 cm |
Height | 77.0000 cm |
Weight | 70.000000 kgs |
