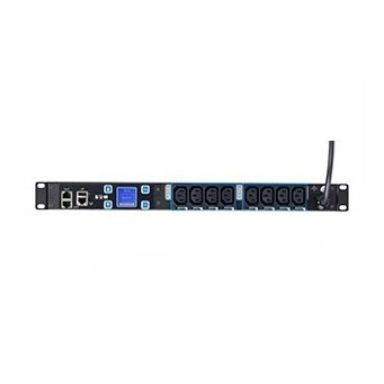

Eaton EMIH02 power distribution unit (PDU) 8 AC outlet(s) 1U Black
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Metered |
| Mounting | Horizontal |
| Display | LCD |
| Product colour | Black |
| Certification | CB- CE- EN 60950-1:2006/A11:2009/A1:2010/A12:2011 Safety - Part 1: General Requirements- IEC 60950-1(ed.2)- IEC 60950-1(ed.2);am1 EN 55022:2010- EN 61000-6-2:2005 Part 6-2- EN 50581 : 2012- REACH- WEEE- PEP- ISO 9001:2008- ISO 14001:2004 |
| Form factor | Rackmount |
| Rack mounting | Yes |
| Cable colour | Black |
| Rack capacity | 1U |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Output connections | 8 x C13 |
| Input connection type | IEC-320-C20 |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Cable length | 3 m |
| Certification | CB- CE- EN 60950-1:2006/A11:2009/A1:2010/A12:2011 Safety - Part 1: General Requirements- IEC 60950-1(ed.2)- IEC 60950-1(ed.2);am1 EN 55022:2010- EN 61000-6-2:2005 Part 6-2- EN 50581 : 2012- REACH- WEEE- PEP- ISO 9001:2008- ISO 14001:2004 |
| Management features | |
| Supported network protocols | HTTP- HTTPS- SSL- Telnet- FTP- SNMP- SMTP- DNS- DHCP- LDAP- RADIUS |
| Management protocols | SNMP- Telnet |
| Firmware upgradeable via | Network- USB |
| Firmware upgradeable | Yes |
| Monitoring | Current |
| Ergonomics | |
| Cable length | 3 m |
| Display | LCD |
| Power | |
| Maximum power | 2300 W |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Maximum current | 10 A |
| Maximum input current per phase | 10 A |
| AC input frequency | 50 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 44.45 x 482.6 x 203 mm |
| Weight | 2.6 kg |
| Width | 44.5 mm |
| Depth | 482.6 mm |
| Height | 203 mm |
| Package weight | 3.8 kg |
| Packaging data | |
| Package weight | 3.8 kg |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Rack mount kit | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Technical details | |
| Sustainability certificates | RoHS |
Eaton EMIH02 power distribution unit (PDU) 8 AC outlet(s) 1U Black
