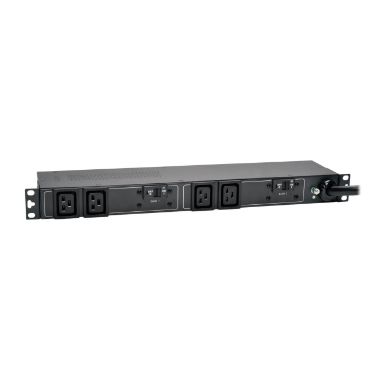

Eaton Tripp Lite PDUH32HV19 7.7kW Single-Phase 200-240V Basic PDU, 4 C19 Outlets, IEC 309 32A Blue Input,
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
Design | |
---|---|
Type | Single-phase |
PDU types | Basic |
Mounting | Horizontal |
Product colour | Black |
Rack capacity | 1U |
Housing material | Metal |
Ports & interfaces | |
AC outlets quantity | 4 AC outlet(s) |
AC outlet types | C19 coupler |
Power plug | IEC309 |
Features | |
Cable length | 3.66 m |
Ergonomics | |
Cable length | 3.66 m |
Power | |
Maximum power | 7700 W |
Nominal input voltage | 200-240 V |
Nominal output voltage | 200-240 V |
Power protection features | Overload |
Maximum current | 32 A |
AC input frequency | 50 - 60 Hz |
Weight & dimensions | |
Dimensions (WxDxH) | 445 x 95.3 x 45 mm |
Weight | 2.87 kg |
Width | 439.4 mm |
Depth | 95.2 mm |
Height | 43.2 mm |
Package width | 514.4 mm |
Package depth | 285.8 mm |
Package height | 76.2 mm |
Package weight | 3.21 kg |
Package dimensions (WxDxH) | 514 x 286 x 76 mm |
Packaging data | |
Package width | 514.4 mm |
Package depth | 285.8 mm |
Package height | 76.2 mm |
Package weight | 3.21 kg |
Package dimensions (WxDxH) | 514 x 286 x 76 mm |
Operational conditions | |
Storage temperature (T-T) | -15 - 50 °C |
Operating relative humidity (H-H) | 5 - 95% |
Technical details | |
Sustainability certificates | RoHS |
Master (outer) case GTIN (EAN/UPC) | 10037332183207 |
Logistics data | |
Master (outer) case width | 508 mm |
Master (outer) case length | 533.4 mm |
Master (outer) case height | 304.8 mm |
Master (outer) case gross weight | 16.3 kg |
Products per master (outer) case | 5 pc(s) |
Country of origin | China |
