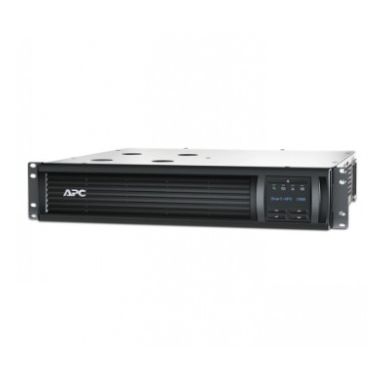

APC Smart-UPS Line-Interactive
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Power | |
|---|---|
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 459 J |
| Efficiency | 0.986 |
| Emergency Power Off (EPO) | O |
| Performance | |
| Hold time (max) | 2 ms |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| LED indicators | Status |
| Surge protection | Yes |
| Noise level | 46 dB |
| Audible alarm(s) | Yes |
| Features | |
| Hold time (max) | 2 ms |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 459 J |
| Efficiency | 0.986 |
| Surge protection | Yes |
| Emergency Power Off (EPO) | O |
| Noise level | 46 dB |
| Audible alarm(s) | Yes |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Number of output IEC jumpers | 2 |
| Battery | |
| Battery life (max) | 6 year(s) |
| Battery capacity | 432 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Typical backup time at half load | 25.8 min |
| Typical backup time at full load | 7.2 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount |
| LED indicators | Status |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | RoHS- ENERGY STAR |
| Weight & dimensions | |
| Weight | 28.6 kg |
| Width | 432 mm |
| Height | 86 mm |
| Depth | 457 mm |
APC Smart-UPS Line-Interactive
| Length | 45.7000 cm |
| Width | 43.2000 cm |
| Height | 8.6000 cm |
| Weight | 28.600000 kgs |
