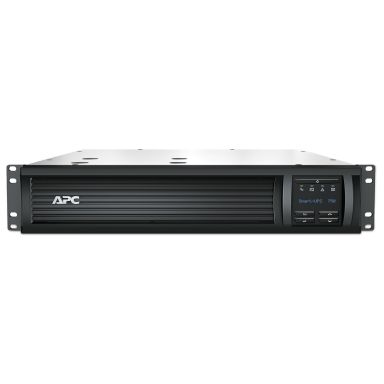

APC Smart-UPS Line-Interactive
In Stock
|
Call For Price (0808 189 1246)
Power
Output power
500 W
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
459 J
Efficiency
97.7%
Emergency Power Off (EPO)
O
Output power capacity
0.75 kVA
Performance
Hold time (max)
2 ms
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
LED indicators
Yes
Surge protection
Yes
Noise level
42 dB
Audible alarm(s)
Yes
Features
Hold time (max)
2 ms
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
Output power
500 W
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
459 J
Efficiency
97.7%
Surge protection
Yes
Emergency Power Off (EPO)
O
Noise level
42 dB
Audible alarm(s)
Yes
Output power capacity
0.75 kVA
Input frequency
50/60 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RJ-45
SmartSlot
Yes
AC outlets quantity
4 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
Number of output IEC jumpers
2
Battery
Battery life (max)
6 year(s)
Battery capacity
168 VAh
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
16 min
Typical backup time at full load
5.5 min
Hot-swap battery
Yes
Cold start
Yes
Automatic battery test
Yes
Design
Rack capacity
2U
Form factor
Rackmount
LED indicators
Yes
Product colour
Black
Certification
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Sustainability certificates
Green Premium
Compliance certificates
RoHS
Weight & dimensions
Package width
546 mm
Package depth
584 mm
Package height
241 mm
Weight
17.3 kg
Width
432 mm
Package weight
21.2 kg
Height
89 mm
Depth
406 mm
Packaging data
Quick installation guide
Yes
Cables included
RS-232, USB cable
Rack mount kit
Yes
Software CD
Yes
Package width
546 mm
Package depth
584 mm
Package height
241 mm
Package weight
21.2 kg
Logistics data
Products per pallet
16 pc(s)
Certificates
Certification
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Quick installation guide
Yes
Cables included
RS-232, USB cable
Rack mount kit
Yes
Software CD
Yes
APC Smart-UPS Line-Interactive
| Length | 40.6000 cm |
| Width | 43.2000 cm |
| Height | 8.9000 cm |
| Weight | 21.20 kgs |
