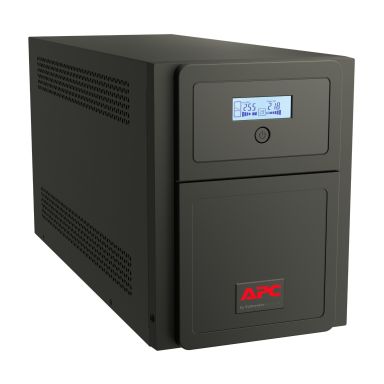

APC Easy UPS SMV Line-Interactive
In Stock
|
Call For Price (0808 189 1246)
Power
Output voltage regulation
-1 - 1%
Output power
1400 W
Input operation voltage (min)
157 V
Input operation voltage (max)
303 V
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Maximum current
20 A
Crest factor
3:1
Output power capacity
2 kVA
Performance
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
LED indicators
Yes
Power protection features
Overload, Short circuit
Noise level
45 dB
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Sine
Output voltage regulation
-1 - 1%
Automatic Voltage Regulation (AVR)
Yes
Output power
1400 W
Input operation voltage (min)
157 V
Input operation voltage (max)
303 V
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Maximum current
20 A
Power protection features
Overload, Short circuit
Noise level
45 dB
Crest factor
3:1
Audible alarm(s)
Yes
Output power capacity
2 kVA
Input frequency
45/65 Hz
Ports & interfaces
USB port
Yes
AC outlets quantity
6 AC outlet(s)
AC outlet types
IEC 320
Battery
Battery life (max)
5 year(s)
Number of batteries supported
4
Battery voltage
12 V
Battery capacity
7 Ah
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
4 h
Cold start
Yes
Design
International Protection (IP) code
IP20
Form factor
Tower
LED indicators
Yes
Product colour
Black
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Harmonized System (HS) code
85078000
Packaging content
Cables included
USB cable
Manual
Yes
Weight & dimensions
Weight
23.5 kg
Width
180 mm
Height
240 mm
Depth
455 mm
Battery width
32.6 cm
Battery depth
60.1 cm
Battery height
41 cm
Battery weight
26.9 kg
Packaging data
Cables included
USB cable
Manual
Yes
Logistics data
Harmonized System (HS) code
85078000
APC Easy UPS SMV Line-Interactive
| Length | 4.50 cm |
| Width | 18.00 cm |
| Height | 24.00 cm |
| Weight | 27.50 kgs |
