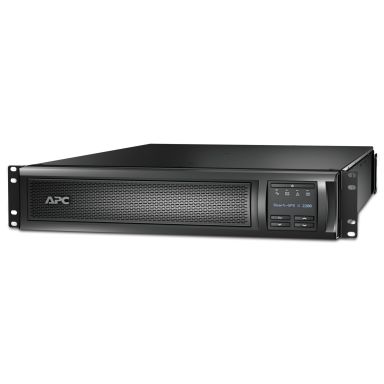

APC SMX2200R2HVNC Smart-UPS X 2200VA Line-Interactive 1980 W 9 AC outlet(s)
In Stock
|
£2351.94
£2822.33 (Inc. VAT)
get it next day (UK Mainland Orders)
Power
Output voltage regulation
5%
Output frequency regulation
+/- 3 Hz
Output power
1980 W
Input operation voltage (min)
208 V
Input operation voltage (max)
230 V
Output operation voltage (min)
208 V
Output operation voltage (max)
240 V
Surge energy rating
645 J
Emergency Power Off (EPO)
Yes
Output power capacity
2.2 kVA
Performance
Audible alarm modes
Battery replacement
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
Response time
10 ms
LED indicators
Yes
Surge protection
Yes
Noise level
55 dB
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
Web-based management
Yes
Audible alarm modes
Battery replacement
UPS topology
Line-Interactive
Waveform
Sine
Output voltage regulation
5%
Output frequency regulation
+/- 3 Hz
Auto-restart
Yes
Response time
10 ms
Output power
1980 W
Input operation voltage (min)
208 V
Input operation voltage (max)
230 V
Output operation voltage (min)
208 V
Output operation voltage (max)
240 V
Surge energy rating
645 J
Surge protection
Yes
Emergency Power Off (EPO)
Yes
Noise level
55 dB
Audible alarm(s)
Yes
Output power capacity
2.2 kVA
Input frequency
50/60 Hz
Ports & interfaces
AC outlets quantity
9 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
1
Battery
Battery capacity
702 Ah
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Hot-swap battery
Yes
Cold start
Yes
Automatic battery test
Yes
Design
Rack capacity
2U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Certification
CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Output voltage
230 V
Output frequency
50/60 Hz
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
3167.15
Compliance certificates
RoHS
Certificates
Certification
CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Compliance certificates
RoHS
Management features
Web-based management
Yes
Packaging content
Quick installation guide
Yes
Cables included
Input power cable, USB cable
Rack mount kit
Yes
Resource CD
Yes
Weight & dimensions
Package width
596 mm
Package depth
869 mm
Package height
243 mm
Weight
37.4 kg
Width
432 mm
Package weight
45.3 kg
Height
85 mm
Depth
667 mm
Packaging data
Quick installation guide
Yes
Cables included
Input power cable, USB cable
Resource CD
Yes
Rack mount kit
Yes
Package width
596 mm
Package depth
869 mm
Package height
243 mm
Package weight
45.3 kg
Logistics data
Products per pallet
8 pc(s)
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
3167.15
Other features
Output voltage
230 V
APC SMX2200R2HVNC Smart-UPS X 2200VA Line-Interactive 1980 W 9 AC outlet(s)
| Length | 66.7000 cm |
| Width | 43.2000 cm |
| Height | 8.5000 cm |
| Weight | 46.18 kgs |
