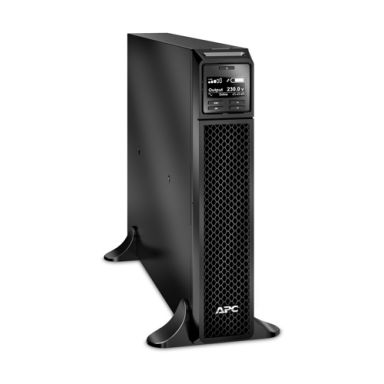

APC SRT3000XLW-IEC UPS

Output frequency regulation

50/60 Hz

Output power

2700 W

Input operation voltage (min)

100 V

Input operation voltage (max)

275 V

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Surge energy rating

340 J

Efficiency

92.4%

Emergency Power Off (EPO)

Yes

Output power capacity

3 kVA

Cable length

2.44 m

USB port

Yes

Serial interface

Yes

Serial interface type

RJ-45

SmartSlot

Yes

AC outlets quantity

8 AC outlet(s)

AC outlet types

C13 coupler, C19 coupler

Power plug

C20 coupler

UPS topology

Double-conversion (Online)

Waveform

Sine

Auto-restart

Yes

LED indicators

Yes

Surge protection

Yes

Noise level

55 dB

Audible alarm(s)

Yes

Web-based management

Yes

UPS topology

Double-conversion (Online)

Waveform

Sine

Output frequency regulation

50/60 Hz

Auto-restart

Yes

Output power

2700 W

Input operation voltage (min)

100 V

Input operation voltage (max)

275 V

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Surge energy rating

340 J

Efficiency

92.4%

Surge protection

Yes

Emergency Power Off (EPO)

Yes

Noise level

55 dB

Audible alarm(s)

Yes

Output power capacity

3 kVA

Input frequency

40/70 Hz

Battery life (max)

5 year(s)

Battery capacity

505 VAh

Battery technology

Sealed Lead Acid (VRLA)

Battery recharge time

3 h

Typical backup time at half load

11.8 min

Typical backup time at full load

4 min

Hot-swap battery

Yes

Cold start

Yes

Automatic battery test

Yes

International Protection (IP) code

IP20

Form factor

Tower

LED indicators

Yes

Product colour

Black

Certification

CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, RCM, UL 1778, VDE, REACH

Cable length

2.44 m

Display type

LCD

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Sustainability certificates

ENERGY STAR

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

4961.68

Compliance certificates

RoHS

Packaging content

Removable support feet

Quick installation guide

Yes

Cables included

RS-232, USB cable

Software CD

Yes

Package width

599 mm

Package depth

871 mm

Package height

246 mm

Package weight

36.7 kg

Web-based management

Yes

Package width

599 mm

Package depth

871 mm

Package height

246 mm

Weight

31.3 kg

Width

85 mm

Package weight

36.7 kg

Height

432 mm

Depth

635 mm

Products per pallet

6 pc(s)

Harmonized System (HS) code

85078000

Certification

CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, RCM, UL 1778, VDE, REACH

Packaging content

Removable support feet

Quick installation guide

Yes

Cables included

RS-232, USB cable

Software CD

Yes

Packaging content

Removable support feet
