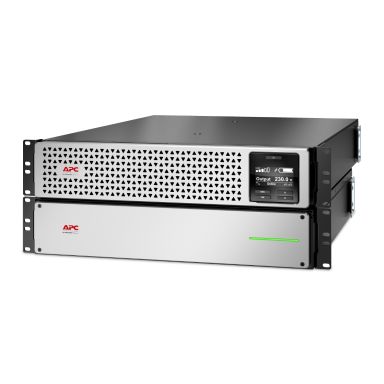

APC Smart-UPS On-Line, 1000VA, Lithium-ion, Rackmount 4U, 230V, 8x C13 IEC outlets, SmartSlot, Extended long runtime, Rail kit included
In Stock
|
Call For Price (0808 189 1246)
Power
Output power
900 W
Input operation voltage (min)
160 V
Input operation voltage (max)
275 V
Output operation voltage (min)
220 V
Output operation voltage (max)
230 V
Surge energy rating
340 J
Emergency Power Off (EPO)
Yes
Crest factor
3:1
Output power capacity
1 kVA
Ports & interfaces
Cable length
1.83 m
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Noise level
50 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Sine
Output power
900 W
Input operation voltage (min)
160 V
Input operation voltage (max)
275 V
Output operation voltage (min)
220 V
Output operation voltage (max)
230 V
Surge energy rating
340 J
Emergency Power Off (EPO)
Yes
Noise level
50 dB
Crest factor
3:1
Output power capacity
1 kVA
Input frequency
40/70 Hz
Power source type
AC
Detachable power cord
Yes
Battery
Battery life (max)
10 year(s)
Battery voltage
48 V
Battery capacity
2400 Ah
Battery technology
Lithium-Ion (Li-Ion)
Typical backup time at half load
252 min
Typical backup time at full load
136 min
Design
International Protection (IP) code
IP20
Rack capacity
4U
Form factor
Rackmount/Tower
Product colour
Black, Silver
Certification
RoHS, CE
Cable length
1.83 m
Modular
Yes
Control type
Buttons
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 15240 m
Technical details
Output frequency
50/60 Hz
Sustainability certificates
Green Premium
Compliance certificates
CE, RoHS
Weight & dimensions
Weight
40.7 kg
Width
432 mm
Height
171 mm
Depth
59 mm
Packaging data
Rack mount kit
Yes
Certificates
Certification
RoHS, CE
Packaging content
Rack mount kit
Yes
APC Smart-UPS On-Line, 1000VA, Lithium-ion, Rackmount 4U, 230V, 8x C13 IEC outlets, SmartSlot, Extended long runtime, Rail kit included
| Length | 1.83 cm |
| Width | 43.2 cm |
| Height | 17.1 cm |
| Weight | 40.70 kgs |
