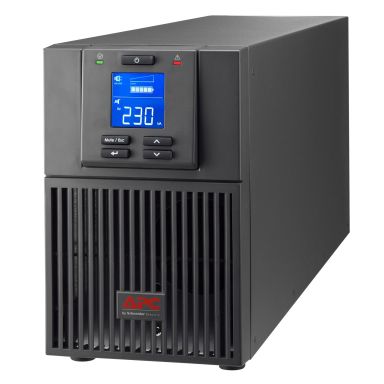

APC SRVPM1KIL uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 800 W 3 AC outlet(s)
In Stock
|
Call For Price
(0808 189 1246)
Power
Output power
800 W
Input operation voltage (min)
160 V
Input operation voltage (max)
280 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
600 J
Output voltage Total Harmonic Distortion (THD)
3%
Crest factor
3:1
Output power capacity
1 kVA
ECO mode
Yes
Performance
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
UPS topology
Double-conversion (Online)
Waveform
Sine
Auto-restart
Yes
LED indicators
Yes
Audible alarm(s)
Yes
Features
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
UPS topology
Double-conversion (Online)
Waveform
Sine
Auto-restart
Yes
Output power
800 W
Input operation voltage (min)
160 V
Input operation voltage (max)
280 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
600 J
Output voltage Total Harmonic Distortion (THD)
3%
Crest factor
3:1
Audible alarm(s)
Yes
Output power capacity
1 kVA
ECO mode
Yes
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
SmartSlot
Yes
AC outlets quantity
3 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
USB 2.0 ports quantity
1
Serial ports quantity
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
4 h
Automatic battery test
Yes
Design
Form factor
Tower
LED indicators
Yes
Product colour
Black
Certification
CE, IEC 62040-1-1, IEC 62040-1-2
REACH
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 14763.6 m
Technical details
Sustainability certificates
RoHS
Harmonized System (HS) code
85078000
Compliance certificates
RoHS
Weight & dimensions
Weight
9.3 kg
Width
145 mm
Height
223 mm
Depth
288 mm
Battery width
23.5 cm
Battery depth
36.5 cm
Battery height
33 cm
Battery weight
10.6 kg
Packaging data
Cables included
USB cable
Manual
Yes
Logistics data
Harmonized System (HS) code
85078000
Certificates
Certification
CE, IEC 62040-1-1, IEC 62040-1-2
REACH
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Cables included
USB cable
Manual
Yes
APC SRVPM1KIL uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 800 W 3 AC outlet(s)
