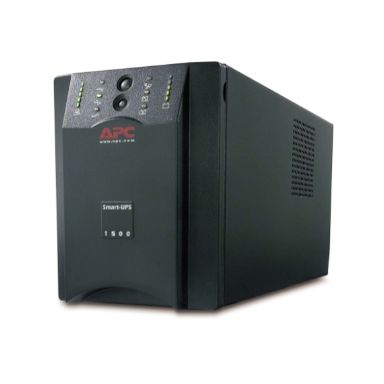

APC SUA1500IX38 uninterruptible power supply (UPS) Line-Interactive 1500 VA 980 W
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Power
Output power
980 W
Input operation voltage (min)
160 V
Input operation voltage (max)
286 V
Output operation voltage (max)
230 V
Surge energy rating
480 J
Output power capacity
1500 VA
Performance
Audible alarm modes
Alarm when on batteryLow battery alarm
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
LED indicators
Power
Surge protection
Yes
Noise level
45 dB
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
Audible alarm modes
Alarm when on batteryLow battery alarm
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
Output power
980 W
Input operation voltage (min)
160 V
Input operation voltage (max)
286 V
Output operation voltage (max)
230 V
Surge energy rating
480 J
Surge protection
Yes
Noise level
45 dB
Audible alarm(s)
Yes
Output power capacity
1500 VA
Input frequency
50/60 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
SmartSlot
Yes
Serial ports quantity
1
RS-232 ports
1
Battery
Battery life (max)
5 year(s)
Number of battery cells
1
Battery recharge time
3 h
Hot-swap battery
Yes
Design
LED indicators
Power
Product colour
Black
Cooling type
Passive
Certification
C-tick CE CSA EN 50091-1 EN 50091-2 GOST UL 1778 UL Listed VDE
RoHS compliance
Yes
Built-in fan
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Technical details
Output frequency
50/60 Hz
Cooling
Cooling type
Passive
Built-in fan
No
Weight & dimensions
Weight
24.1 kg
Width
170 mm
Height
216 mm
Depth
439 mm
Package width
330 mm
Package depth
590 mm
Package height
370 mm
Package weight
27 kg
Packaging data
Cables included
RS-232USB cable
Manual
Yes
Package width
330 mm
Package depth
590 mm
Package height
370 mm
Package weight
27 kg
Certificates
RoHS compliance
Yes
Packaging content
Cables included
RS-232USB cable
Manual
Yes
APC SUA1500IX38 uninterruptible power supply (UPS) Line-Interactive 1500 VA 980 W
| Length | 43.90 cm |
| Width | 17.00 cm |
| Height | 21.60 cm |
| Weight | 24.100000 kgs |
